FP Propellers
Finished units up to fifteen tons: the heart of the Fundilusa foundry.
Overview

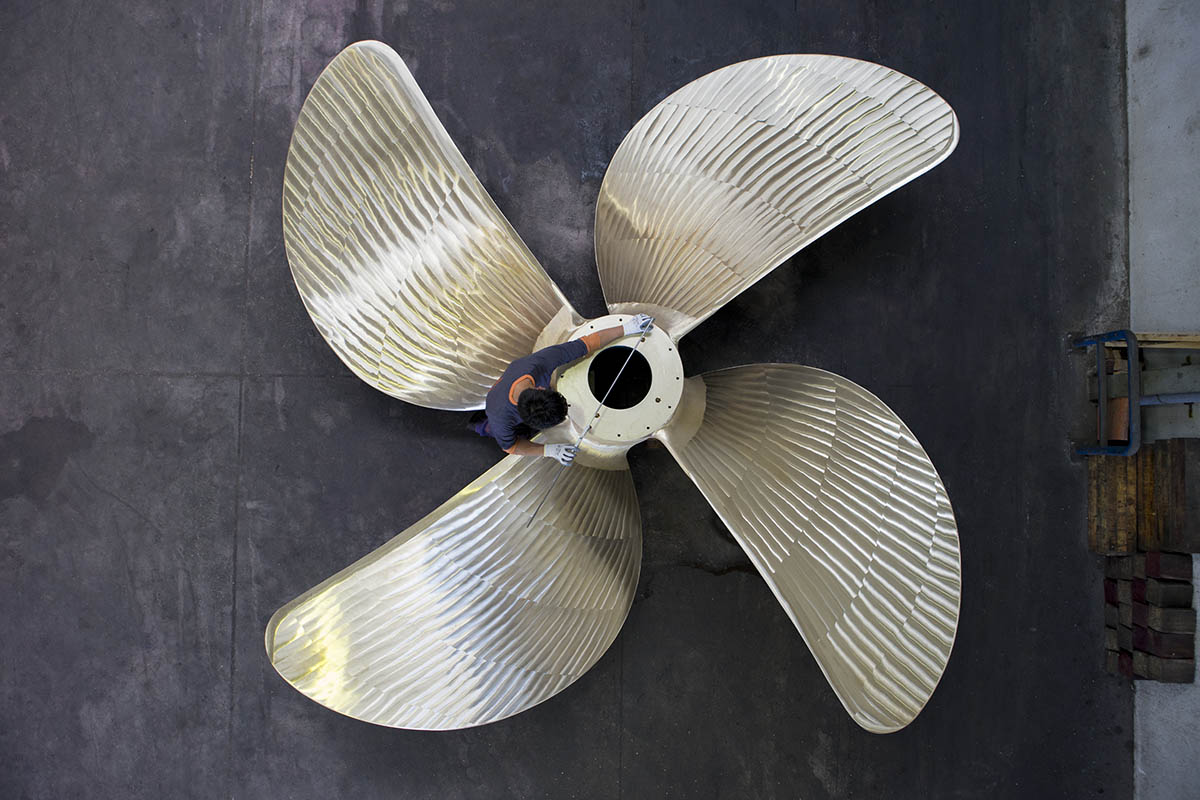

Fundilusa’s factory produces FP propellers of up to fifteen tons in bronze alloy, with diameters up to 5.5 meters. The offer includes Class II, Class I and Class S types, fully CNC machined.
We also cast and machine stainless-steel propellers in the same works, to the same quality system. That means one supplier, one set of approvals and one point of contact for a bronze and a stainless requirement alike, across the most demanding fixed-pitch and controllable-pitch (FPP & CPP) applications.
TECHNICAL SPECIFICATION
Max. weight
15 t (monobloc)
Max. diameter
Ø 5.5 m
Classes
II · I · S
Materials
Bronze alloy · Stainless steel
Machining
100% CNC
Systems
FPP & CPP
FAQ
FP Propellers, in detail.
What is the largest fixed-pitch propeller Fundilusa can cast?
Fundilusa casts and machines monobloc fixed-pitch propellers up to 15 tons finished weight, with diameters up to 5.5 metres. That limit applies to one-piece propellers; blades are produced separately up to 8 tons each.
Which bronze classes are available?
Class II, Class I and Class S. Fundilusa also has capacity for stainless-steel propellers, so a single supplier can cover both bronze and stainless requirements.
Are the propellers fully machined?
Yes. FP propellers are 100% CNC machined. Two robotic cells surface-mill propellers up to 12 tons and 4,600 mm diameter, with a 3.3 m spherical reach per robot, before final grinding, polishing and dynamic balancing.
Can Fundilusa supply for both FPP and CPP systems?
Yes. The monobloc propeller is the finished product for fixed-pitch (FPP) installations, and Fundilusa additionally supplies the blades and hubs used in controllable-pitch (CPP) systems.
Are stainless-steel propellers available?
Yes. Fundilusa casts and machines propellers in stainless steel as well as in Class II, I and S bronze, in the same works and under the same ISO 9001 system, so a stainless requirement does not have to be split off to a second supplier.
Is the propeller certified before delivery?
Yes. Every propeller is classified before delivery by a recognised society (ABS, Lloyd's Register, DNV, Bureau Veritas, RINA or Germanischer Lloyd) under Fundilusa's ISO 9001 system, certificate PT006500 issued by Bureau Veritas.
